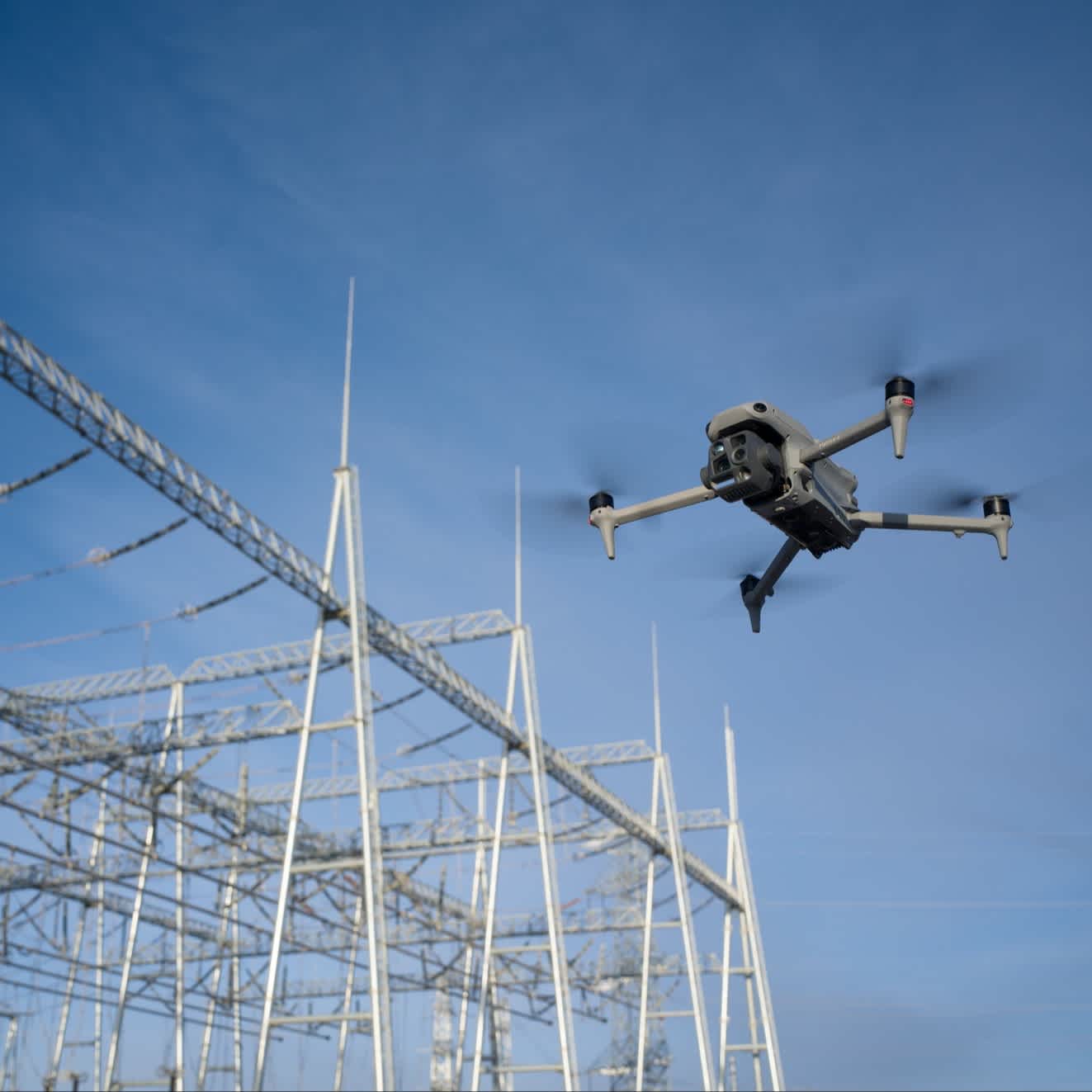

At Drone Scotland, we deliver high-accuracy thermal surveys and aerial thermography using the DJI Matrice 4TD. Equipped with a radiometric thermal sensor, high-zoom visual optics, and a laser rangefinder, this state-of-the-art platform allows us to detect subtle temperature anomalies quickly, safely, and non-destructively across Scotland.
Whether inspecting commercial roofs for moisture, identifying heat loss in building stock, or searching for lost livestock in the Highlands, our thermal drone services turn invisible heat signatures into actionable intelligence.
Technical Capabilities of Our Thermal Sensor
The Matrice 4TD sensor payload provides detailed radiometric data tailored to complex commercial inspections:
- High-Resolution Radiometric Sensor (640×512, Ultra-High Res up to 1280×1024): Captures precise, pixel-by-pixel temperature measurements rather than simple visual representations of heat.
- Dual-Gain Temperature Modes: Measures target temperatures accurately from -20°C up to 150°C (High Gain for maximum sensitivity) and up to 550°C (Low Gain for high-heat industrial checks).
- Side-by-Side Split Screen & Image Fusion: Allows our pilots to overlay radiometric thermal data directly onto high-definition visual feeds in real time, making pinpointing structural defects instantaneous.
- Laser Rangefinder Integration: Calculates the exact distance and GPS coordinates of heat anomalies up to 1,800 meters away.
- Near-Infrared (NIR) Auxiliary Light: Enhances low-light and night-time operations, providing clean context imagery in complete darkness.
Commercial Applications across the UK
1. Building Envelope & District Heating Thermal Audits
Heat loss costs Scottish businesses thousands of pounds every year. Our drone thermography identifies missing insulation, air leakage, structural cold bridging, and underground district heating pipe leaks—all without erecting scaffolding or disrupting site operations.
2. Commercial Roof Leak & Moisture Detection
Flat roofs on commercial warehouses, factories, and public buildings trap moisture beneath waterproofing membranes. Because wet insulation retains heat longer than dry insulation, our evening thermal flights map trapped water pockets accurately to guide targeted roof repairs.
3. Solar PV & Electrical Infrastructure Surveys
A single failing cell or junction box on a solar farm can drop an entire array’s output. Flying the Matrice 4TD over solar installations and electrical substations reveals hot spots caused by electrical overload, faulty wiring, or short circuits before catastrophic equipment failure occurs.
Why Choose Drone Scotland for Thermography?
- CAA Authorized & Fully Insured: Operated by experienced, licensed commercial pilots trained in thermal data interpretation.
- Qualified Thermographers: Our drone pilots and data processors are qualified thermographers.
- Comprehensive Reporting: We don’t just hand over raw thermal video; we provide processed, radiometric inspection reports highlighting exact temperatures, GPS locations, and severity ratings for maintenance teams.
- All-Weather Capability: Featuring an IP55 weather rating and operating in temperatures down to -20°C, we can execute critical thermal flights during cold winter months when thermal contrast is at its peak.
Request a Thermal Survey
Need a non-intrusive thermal assessment for your building, utility network, or project? Contact our team today at office@dronescotland.co.uk
